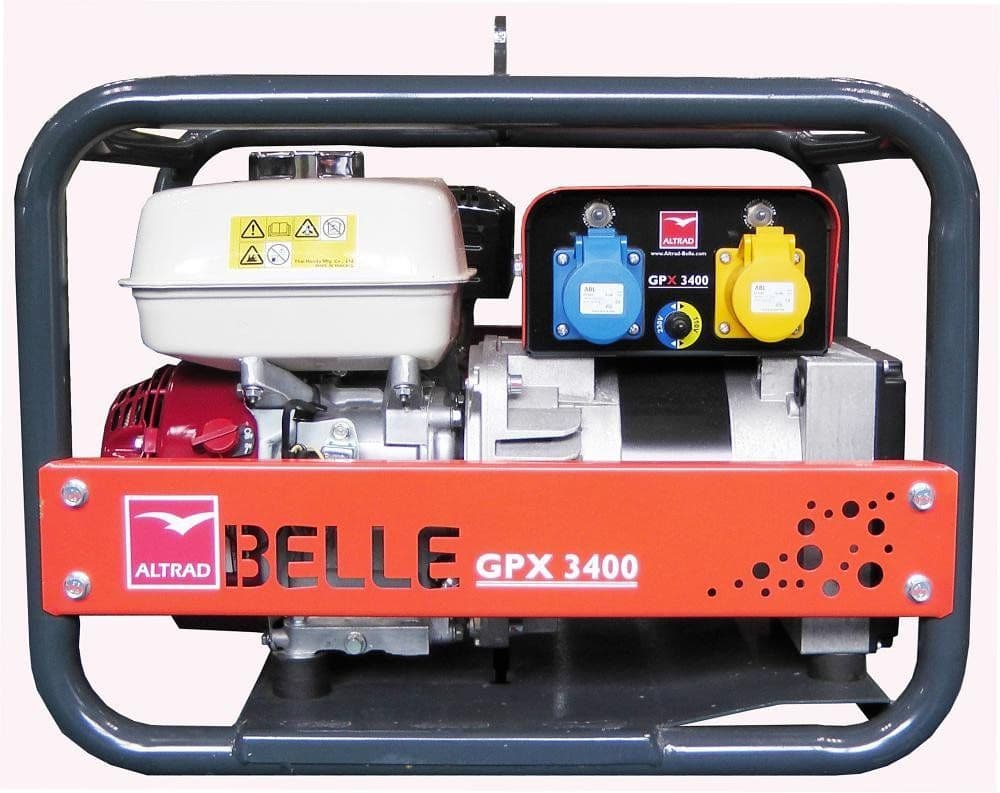

Belle GPX 3400 - 3.5 Kva Generator - Petrol
The Belle GPX 3400 is a compact petrol-powered 3.4kVA open set generator with a robust, stackable protective frame and a high-quality, heavy-duty NSM alternator and selectable 110V and 230V supplies with system breakers.
It is designed to provide reliable power in the harshest conditions and withstand the rigours of heavy site and rental use.
It features a protective belly plate which also aids use on soft ground and is equipped with a reliable 3.3kW Honda GX200 petrol engine, complete with recoil start and low engine oil cut-off. It also has over-sized 4-point Anti-Vibration mounts.
The engine and alternator of the GPX 3400 are protected from physical damage without compromising accessibility to service points. All electrics have full overload protection and are housed in a protective steel enclosure, with protruding durable screw-in sockets.
A single voltage 110V-only version of the GPX 3400 (55V – 0 – 55V) with dual pole system breakers which is suitable for Tin 12 fusion welding applications is also available (GPX 3400 CTE).
Key Information
Output
4.3Hp/3.3kW. 3.4kVA
Rating @ 0.8 p/f. 2.7kW
PRP Rating. 2.5kW Continuous
Output Sockets
1 x 16Amp 110V Socket
1 x 16Amp 230V Socket
1 x 32Amp 110V Socket
Running Time @90% Load
2.3 Hours
Fuel Tank Capacity
3.1 Ltr
Sound Power Level
96 dB LWA
Dimensions
(L) 618mm x (W) 47mm x (H) 515mm
Weight
47kg
Safety Equipment
Prices
| Time | Price |
|---|---|
| 1 day | £35 |
| 2 days | £53 |
| 3 days | £70.50 |
| 7 days | £88 |
