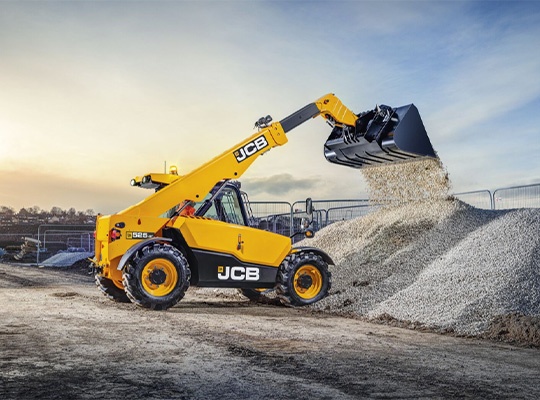

525-60 Hi-Viz Telehandler
BUILT AROUND A FULL-SIZE CAB, THE 525-60 HI VIZ OFFERS INDUSTRY LEADING ALL-ROUND VISIBILITY FOR MAXIMUM ON-SITE SYSTEM
A low height of 1890mm and a narrow width of 1840mm enables this JCB Loadall to access the very smallest operating environments.
- 2-speed transmission allows you to select high and low speeds. The low speed setting complies with building site speed regulations, while high speed is ideal for roading.
- For excellent traction and performance in difficult conditions, we’ve fitted the JCB 525-60 HI-VIZ telehandler with 4WD as standard.
- Your telehandler operators can manoeuvre quickly and easily with directional shuttle changes possible via either the shuttle lever on the steering column or the joystick-mounted shuttle switch.
Key Information
Dimensions
(L) 3380mm x (W) 18400mm x (H) 1890mm
Weight
5490kg
Maximum Lift Capacity
2500kg
Lift Capacity to Full Height
2000kg
Lift Capacity at Full Height
800kg
Maximum Lift Height
6000mm
Reach at Max Lift Height
-150mm
Maximum Forward Reach
3060mm
Reach with 1ton Payload
3000m
Fuel Tank Capacity
65ltr
Safety Equipment
Prices
| Time | Price |
|---|---|
| 1 day | £247.50 |
| 2 days | £371.50 |
| 3 days | £495 |
| 7 days | £495 |
